Design

Technical Features

Features

• Inverter drives with automatic multi speed when stop and start.
• Automatically roll forming, and cutting at any length with pre-setting quantity (10 programs).The control panel enables to count a total length of was done coil.
• Signal feedback from encoder showing existing length of product.
• Automatically alarm to pre-cutting before the order finished.

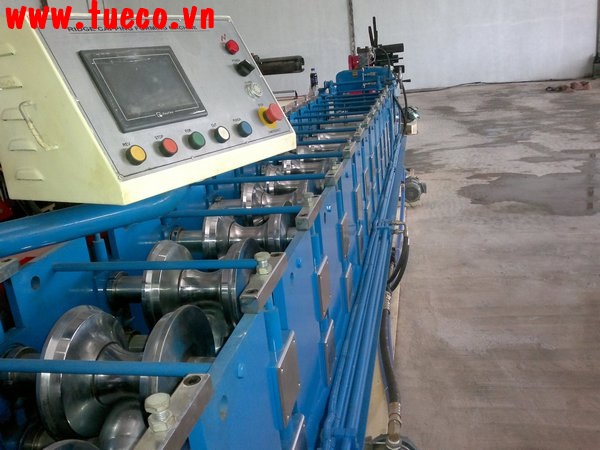

• Rollers: S55C base material solid form CNC precision machined, through hardened with hard chromium plated get 50-55HRC.

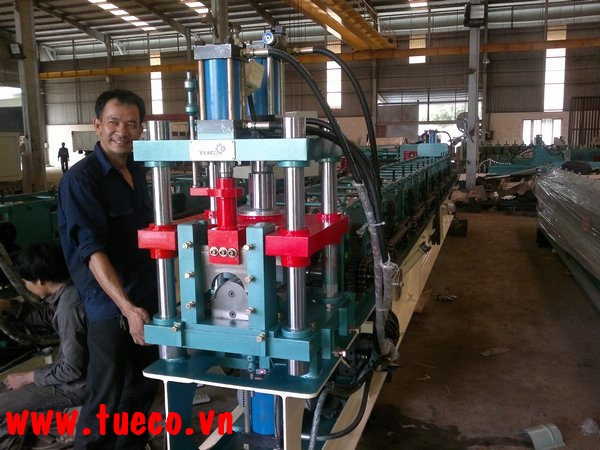

• Cutting die : SKD 11 base material solid form CNC wire cutting machined, through hardened get 58-60HRC.

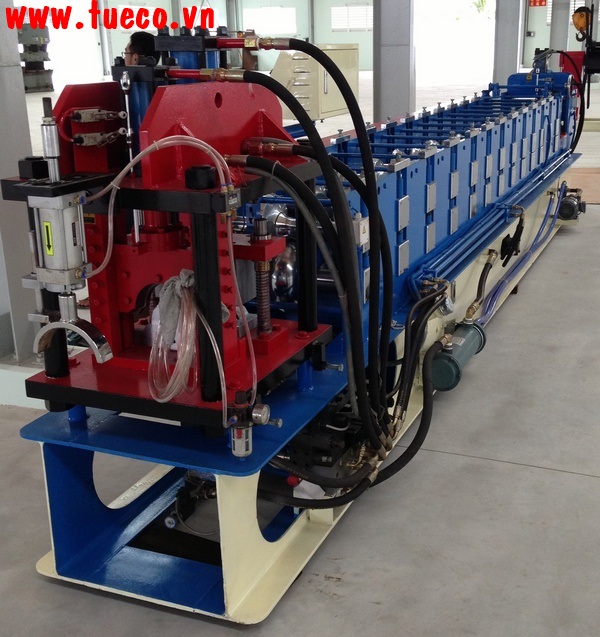

• Hydraulic system is equipped with a high cooling system to afford the machine operating continuously from 20 to 22 hours per day.

Origin of Components

- PLC  : S7-200 CPU 224 - Mitsubishi – Japan

- Touch panel  : EasyView- Taiwan

- Encoders  : Korea

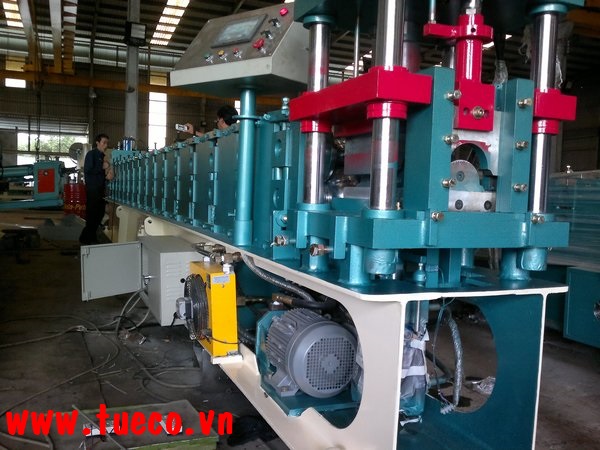

- Electric motor  : VTC – Taiwan

- Hydraulic components  : Yuken – Japan

- Cutting dies  : SKD11– Japan

- Rollers  : Alloy steel – Japan

- Bearing  : Taiwan

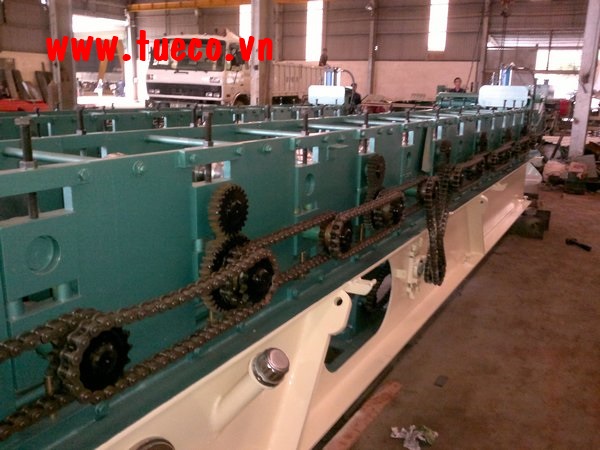

- Chain  : Taiwan
