Features
§ Automatically roll forming, and cutting at any length with pre-setting quantity (10 programs). The control panel enables to count a total length of was done coil.
§ Signal feedback from encoder showing existing length of product.
§ Automatically alarm to pre-cutting before the order finished.
§ Rollers: S55C base material solid form CNC precision machined, through hardened with hard chromium plated get 50-55HRC.

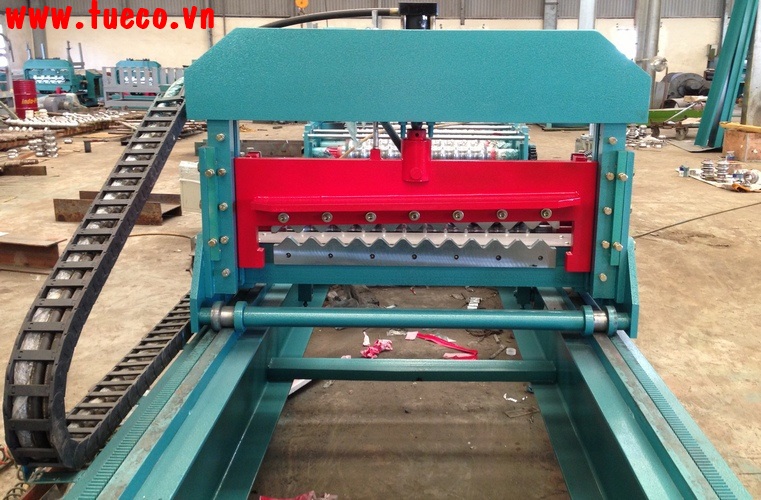

§ Cutting die : SKD 11 base material solid form CNC wire cutting machined, through hardened get 58-60HRC .
§ Hydraulic system is equipped with a high cooling system to afford the machine operating continuously from 20 to 22 hours per day.
Origin of Components
- PLC : S7-200 CPU 224 - Mitsubishi – Japan
- Touch panel : EasyView- Taiwan
- Encoders : Korea
- Electric motor : VTC – Taiwan
- Hydraulic components : Yuken – Japan
- Cutting dies : SKD11– Japan
- Rollers : Alloy steel – Japan
- Bearing : Taiwan
- Chain : Taiwan
