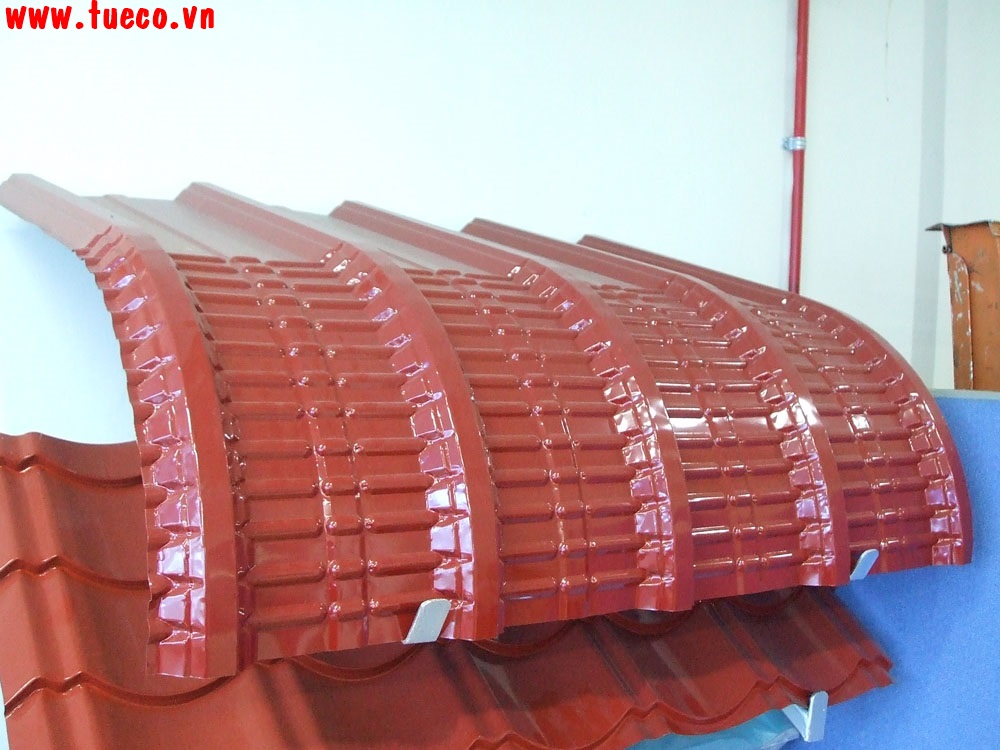

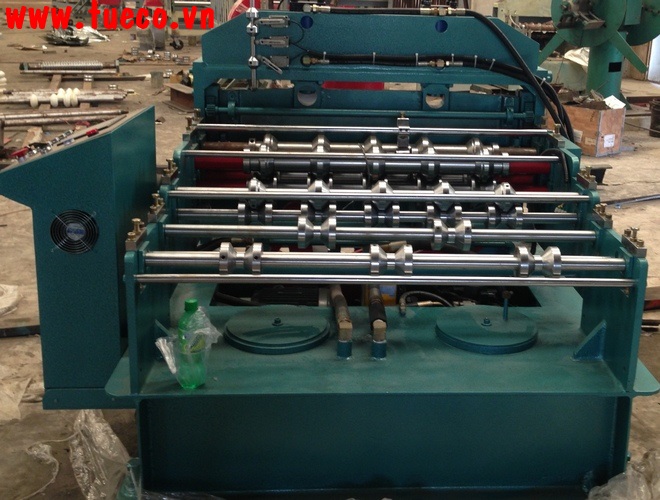

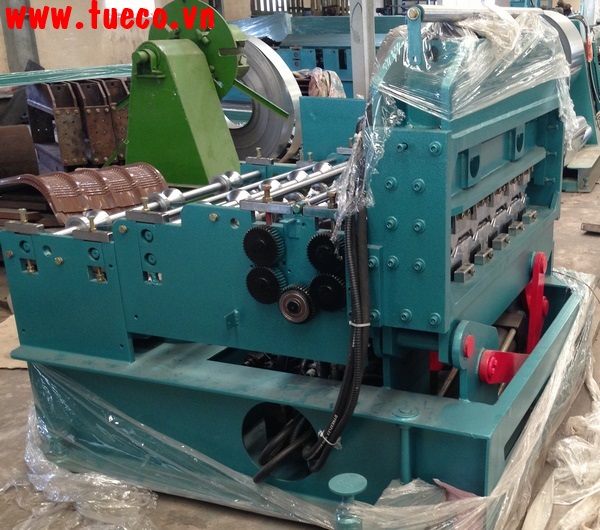

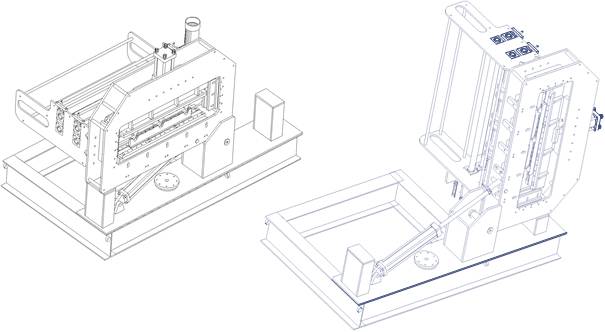

Crimp curve machine

Types and Uses

ITEMS	CURVE MACHINE CORRUGATED TYPE + RIBSTAR PROFILE
Electric requirement	220V/3ph/50Hz
Power	Motor pump: 5.5KW + transmission motor :
Weight of machine	3 tons
Dimension	L= 1.5 m; W= 2.7 m; H=2.0 m
Speed:	2meters/minute
Thickness	0.18mm – 0.6mm ( F.H 85-95 HRB )
Material Yield Strength	G300mpa – G550mpa ( F.H 85-95 HRB )
Material width	914 mm – 1219mm

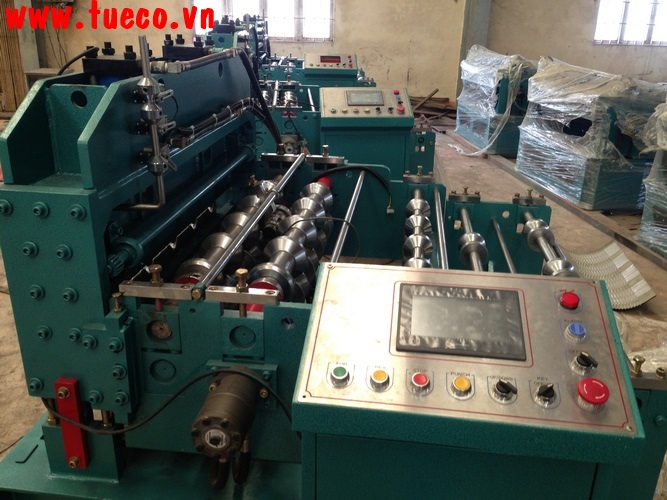

Control system	PLC , fully automatic programmable
Transmission system	Electric motor
Pressing system	By hydraulic
Pressing die	Material made by SKD11

Automatically pressing at any length step with pre-setting quantity (5 programs).
Automatically alarm before pressing completed.
Die made of alloy steel, thermo-hardening, chromium plated get hardness to 50-58HRC

- PLC : S7-200 CPU 224 - Mitsubishi – Japan

- Touch panel : EasyView- Taiwan

- Encoders : Korea

- Electric motor : VTC – Taiwan

- Hydraulic components : Yuken – Japan

- Cutting dies : SKD11– Japan

- Rollers : Alloy steel – Japan

- Bearing : Taiwan

- Chain : Taiwan
