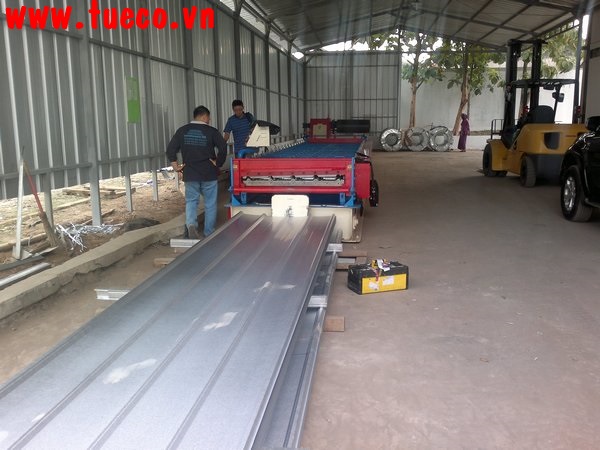

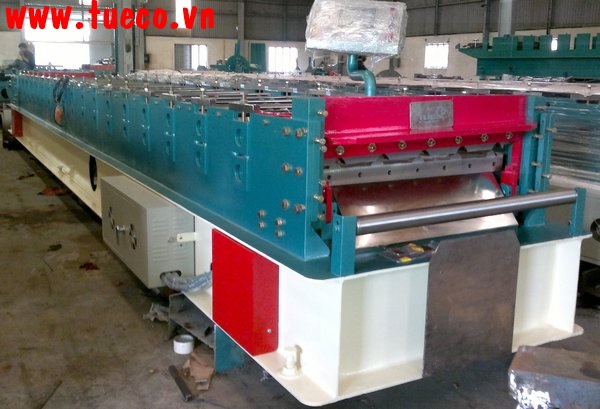

Square Ribs / Roofing Roll Forming Machine

Types and Uses

ITEMS	11 - ROUND RIBS MACHINE	5 - SQUARE RIBS MACHINE/
Electric requirement	380V/3ph/50Hz	380V/3ph/50Hz
Power	Motor – pumb :7.5KW	Motor – pumb :7.5KW
Weight of machine	9 tons	9 tons
Dimension	L= 9 m; W=1.7 m; H=1.5 m	L= 9 m; W= 2.0 m; H=1.5 m
Forming speed	25 meter / min	25 meter / min
Thickness	0.20mm – 0.50mm	0.20mm – 0.50mm
Material Strength	G300mpa – G550mpa	G300mpa – G550mpa
Material width	914mm/1219 mm	914mm/1219 mm
Cover width	Up to order
Control system	PLC , fully automatic programmable	PLC , fully automatic programmable
Transmission system	Hydraulic motor	Hydraulic motor
Cutting system	by Hydraulic	by Hydraulic

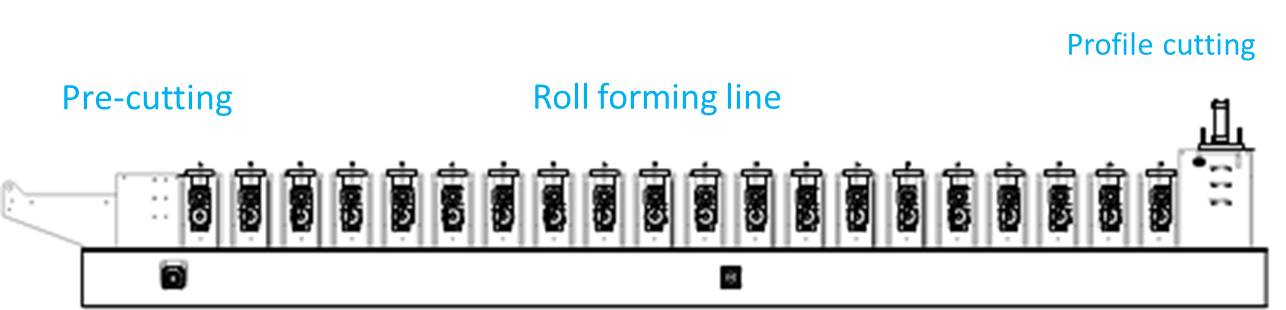

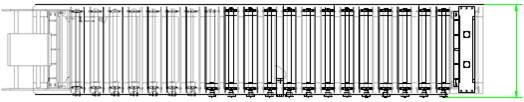

Rollers stations	20	20

Automatically roll forming, and cutting at any length with pre-setting quantity (10 programs).The control panel enables to count a total length of was done coil.
Signal feedback from encoder showing existing length of product.
Automatically alarm to pre-cutting before the order finished.

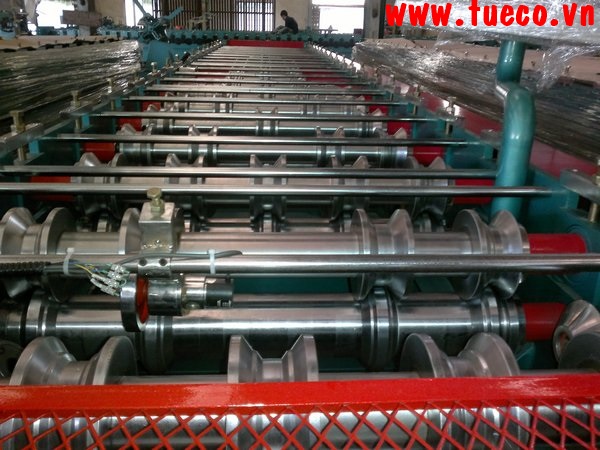

Rollers: S55C base material solid form CNC precision machined, through hardened with hard chromium plated get 50-55HRC.
Cutting die : SKD 11 base material solid form CNC wire cutting machined, through hardened get 58-60HRC.
Hydraulic system is equipped with a high cooling system to afford the machine operating continuously from 20 to 22 hours per day.

- PLC : S7-200 CPU 224 - Mitsubishi – Japan

- Touch panel : EasyView- Taiwan

- Encoders : Korea

- Electric motor : VTC – Taiwan

- Hydraulic components : Yuken – Japan

- Cutting dies : SKD11– Japan

- Rollers : Alloy steel – Japan

- Bearing : Taiwan

- Chain : Taiwan

- Chain : Japan
